Specifications, compatibility and ordering information

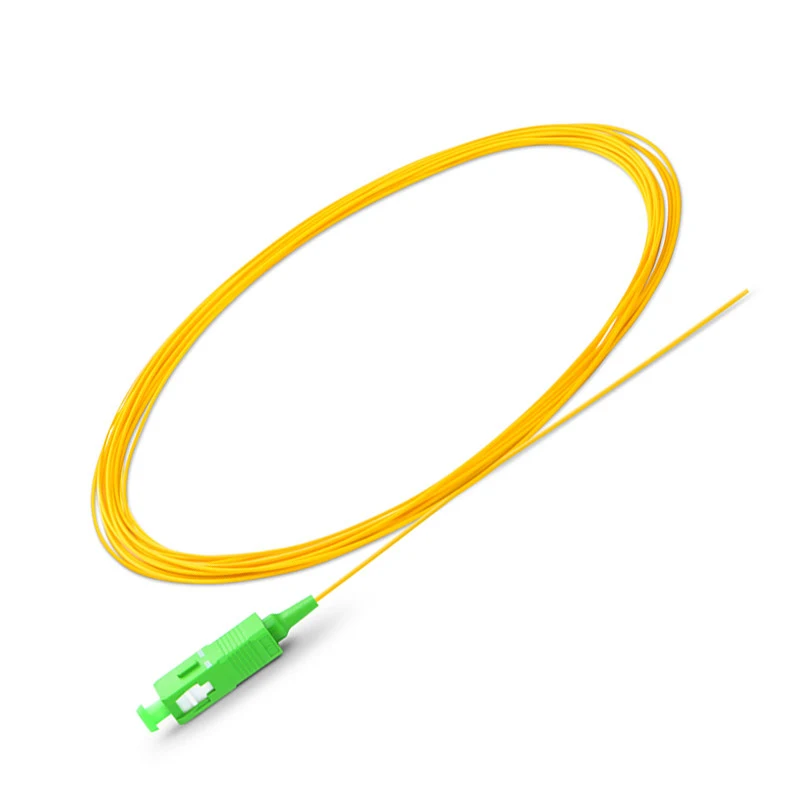

SC APC OS2 Simplex Fiber Pigtail
SC APC OS2 Simplex Fiber Pigtail is terminated with an SC/APC connector at one end and leaves the opposite end prepared for fusion splicing. It uses OS2 9/125 μm single-mode fiber for optical cable termination in FTTH, PON and optical distribution networks.
The APC-polished connector helps reduce back reflection in single-mode links. The pigtail can be installed inside optical distribution frames, fiber termination boxes, splice trays and other fiber management equipment.
Key Features
SC/APC connector at one end
Bare fiber end for fusion splicing
OS2 9/125 μm single-mode fiber
G657A1 bend-insensitive fiber option
Simplex one-fiber construction
Low insertion loss and high return loss
Multiple cable diameters and jacket options
Custom lengths available
Specifications
| Parameter | Specification |
|---|---|
| Connector | SC/APC |
| Opposite End | Bare fiber for fusion splicing |
| Fiber Type | OS2 9/125 μm single-mode |
| Optional Fiber | G657A1 bend-insensitive fiber |
| Fiber Count | Simplex, 1 fiber |
| Cable Diameter | 0.9 mm, 2.0 mm or 3.0 mm |
| Jacket Material | PVC, LSZH or OFNP |
| Insertion Loss | ≤0.3 dB |
| Return Loss | ≥60 dB |
| Operating Wavelength | 1310/1550 nm |
| Operating Temperature | -25°C to +70°C |
| Available Lengths | 0.5 m, 1 m, 2 m, 3 m or 5 m |
| Custom Length | Available |
Applications
FTTH and FTTx networks
PON and ODN systems
Optical distribution frames
Fiber termination boxes
PLC splitter connections
Splice trays and fiber enclosures
Configured for Fiber Termination
This SC APC OS2 pigtail can be supplied with different fiber types, cable diameters, jacket materials and lengths. It provides a factory-terminated connector end while keeping the opposite end ready for field fusion splicing.
Send us the required fiber type, cable diameter, length, jacket material and order quantity for configuration confirmation and quotation.
