GPX11F1-B 576-Core Floor-Standing Optical Distribution Frame
The GPX11F1-B is a 576-core floor-standing optical distribution frame designed for high-capacity fiber splicing, termination, patching and cable management in telecom rooms, backbone distribution sites and optical network nodes. Its full-height cabinet structure provides dedicated space for fiber distribution units, cable routing and jumper management within one centralized ODF system.
This model is intended for projects where hundreds of fibers must be managed in one location and long-term access, re-patching and network expansion are as important as the initial installation.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | GPX11F1-B |
| Product Type | Floor-Standing Optical Distribution Frame |
| Fiber Capacity | 576 Fibers |
| Dimensions | 2200 × 840 × 300 mm |
| Housing Material | Cold-Rolled Steel |
| Internal Structure | Modular Fusion and Distribution Units |
| Adapter Options | FC / SC / ST |
| Main Functions | Splicing / Termination / Patching / Fiber Management |
| Installation | Indoor Floor-Standing |
| Operating Temperature | -40°C to +60°C |
576 Fibers Without Losing Control of the Patch Field

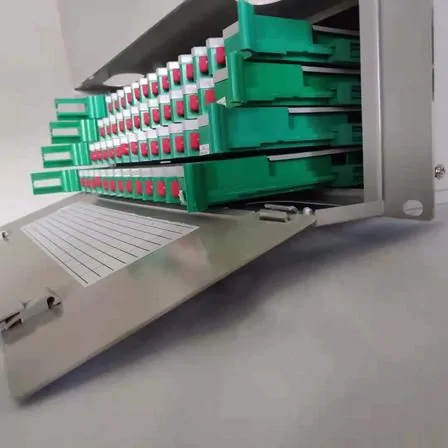

Capacity is only useful if technicians can still trace, patch and service individual fiber routes after the cabinet is fully loaded. The GPX11F1-B uses modular fusion and distribution units together with dedicated routing space to keep high fiber counts organized inside the frame.
For central-office and backbone applications, this helps reduce congestion around the adapter field and makes later network changes easier than managing the same fiber count across multiple smaller panels.
Configured Around the Required Interface
The ODF can be built around the connector and distribution format used by the project. FC, SC and ST adapter configurations are available, allowing the cabinet layout to match existing fiber infrastructure instead of requiring unnecessary changes to patch cords or pigtails.
Fiber count, adapter type and distribution-unit arrangement should be confirmed together before production so the final cabinet matches the actual termination plan.
Check Site Space and Cable Entry Before Ordering
A full-height 576-core ODF needs to fit both the equipment-room layout and the incoming cable route. Before ordering, confirm the available floor space, cable-entry direction, required fiber count and front-side operating clearance.
For replacement projects, cabinet dimensions and the existing cable-routing method should be checked before shipment to avoid installation changes on site.
Typical Applications
Telecom central offices
Optical backbone distribution sites
Large fiber aggregation points
Carrier and access-network equipment rooms
Campus and building backbone distribution
Network expansion and ODF replacement projects
Related termination and patching components are available from our Fiber Pigtails, Fiber Adapters and Fiber Patch Cords product ranges.
Send Us Your ODF Configuration
Send the required fiber count, adapter type, incoming cable arrangement, installation space and project quantity. For an existing telecom room or ODF replacement, a cabinet layout or site photo can help us confirm the GPX11F1-B configuration before quotation.
