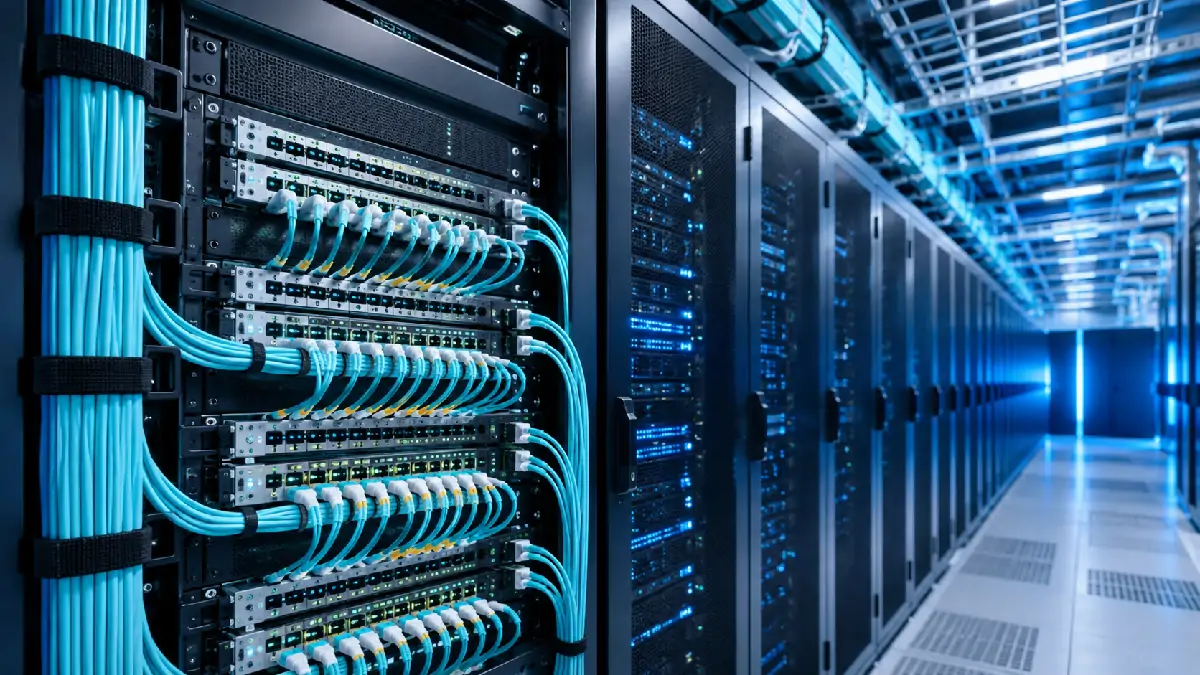

High-density data center fiber planning is not only a question of how many fibers can fit inside a rack. As connection counts increase, the available space for cable entry, patching, connector access, bend management, labeling, and future changes becomes part of the cabling decision.
A practical review therefore starts with the equipment being connected and follows the physical path through the rack, distribution position, and wider network. The final cable or assembly configuration should fit both the optical requirement and the way technicians will install, identify, maintain, and change the connection.
Start with the Equipment Interfaces
Identify the equipment at both ends of the connection before deciding on the cable construction or assembly format. Useful information includes the equipment model, port position, known connector interface, fiber type, transceiver information, and any existing cable or reference assembly.
The purpose of this step is not to produce a complete specification immediately. It is to establish the physical interfaces that the final connection must match and to avoid selecting a cabling format that cannot be used with the actual equipment.
Check the Space Available Inside the Rack
Increasing connection density places more cables, adapters, patching positions, and identification points inside the same physical area. A configuration may fit in terms of port count while still creating practical problems if there is insufficient room for cable entry, connector access, routing, or service work.
Panel and patching space
Review where patch panels, cassettes, modules, adapters, or other distribution hardware will be installed and how much usable rack or cabinet space is available. The required density should be considered together with access for patching and future changes.
Cable entry and routing
Confirm where cables enter the rack, how they move between equipment and distribution positions, and whether the route provides enough space for the required cable construction and bend conditions. Routing should not block access to equipment or make individual connections unnecessarily difficult to trace or replace.
Connector access
Higher density can reduce the amount of working space around individual ports. Connector arrangement, adapter position, neighboring cables, and technician access should therefore be reviewed together rather than judging density only by the number of available ports.
Separate Permanent Cabling from Equipment-Side Connections
The permanent route and the connection directly attached to equipment often have different service lives. Treating them separately can make later equipment changes easier to manage.
Permanent or structured route
This part of the network is usually tied more closely to the room, rack row, pathway, distribution position, or backbone structure. Capacity, pathway availability, labeling, distribution hardware, and future expansion are therefore important considerations.
Equipment-side connection
The equipment-side portion is affected more directly by the actual port, connector interface, rack position, polarity, assembly length, and equipment replacement cycle. These connections may need to change even when the permanent route remains in place.
Review the Distribution Point Between Equipment and the Wider Network
Not every data center connection runs directly from one device to another. The route may pass through patch panels, cassettes, modules, distribution frames, cabinets, or other organized transition points before reaching its destination.
The appropriate distribution arrangement depends on the rack layout, number of connections, equipment interfaces, pathway structure, maintenance method, and how frequently the network is expected to change.
Plan for Moves, Adds, and Changes
A high-density installation should still allow individual connections to be identified and serviced. As the network changes, clear labeling, organized routing, polarity control, accessible patching positions, and separation between permanent and equipment-side cabling can become more valuable than simply maximizing the initial connection count.
Future capacity should also be considered before the available rack and pathway space is fully occupied. Spare fibers, additional distribution positions, reserve pathway capacity, and expected equipment changes can influence the initial design.
Information to Review Before Finalizing the Configuration
| Review area | What to check | Useful project information |
|---|---|---|
| Equipment interfaces | Fiber type, connector interface, polarity, port position, and equipment-side connection format | Equipment model, port information, transceiver details, photographs, or existing cable references |
| Rack space | Available panel position, cable entry, connector access, bend space, and working room | Rack layout, cabinet photographs, available rack units, and equipment position |
| Connection density | Number of connections, patching positions, organization, identification, and future additions | Current port count, planned growth, spare capacity, and expected equipment changes |
| Distribution path | Panels, cassettes, modules, distribution points, permanent routes, and equipment-side sections | Network diagram, rack elevation, pathway information, or existing distribution layout |
| Maintenance | Patch access, replacement method, labeling, testing access, and ability to trace individual circuits | Service requirements, access restrictions, labeling standards, and maintenance procedures |
The final fiber type, connector interface, polarity, cable or assembly construction, length, capacity, distribution method, labeling, testing, and delivery scope should follow the actual rack layout, connected equipment, and network route.
Use the Rack Layout as the Starting Point
For an initial review, provide the equipment being connected, known interfaces, approximate connection count, rack or cabinet layout, available pathway information, and any existing drawings, photographs, cable labels, or reference products.
This information can be used to narrow the relevant fiber cable, assembly, MPO/MTP, connectivity, and distribution options before the final configuration is confirmed.
